Available mPact-SC Mobile Systems:

mPact-5SC (6 g/hr)
mPact-10S (10g/hr)
Oxygen Flow: 10-LPM
Operating Temp: 40-90 F
Supply Water Temp: 40-72 F
Power: 120 VAC, (2) 20A

Brochures:

1. mPact-5SC Brochure

Our Products - Mobile Cleaning & Surface Sanitation (brochure)

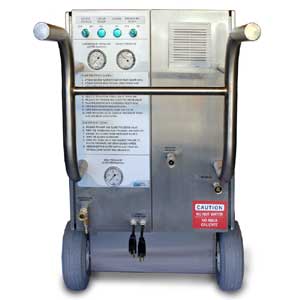

The mPact-5SC is a cost-effective mobile cleaning and antimicrobial treatment system designed for multiple intervention points within food and beverage processing facilities. The system features a dual lance handspray gun for sequential cleaning and antimicrobial treatment of food or beverage contact surfaces.

The mPact-5SC uses ozonated low and ozonated high pressure cold water to meet and exceed microbial reductions commonly attained through conventional hot water and chemical cleaning/sanitation. Through vigorous high pressure water spray and strong ozone oxidation, the mPact-5SC can reduce up to 100% of the hot water and chemicals commonly used during cleaning and sanitation shifts. The system can be used for in process intervention sanitation or direct product treatment without additional labeling requirements.

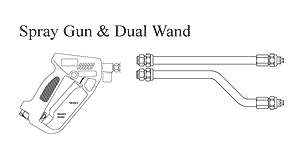

ACTS’s ergonomically designed spray gun is available in customized lengths for plant specific applications (std. length is 12”). The mPact-5SC uses cold water only and has a flow rate of 2 GPM for high pressure ozonated water stream and 5 GPM for the low pressure ozonated water stream.


SPECIFICATIONS

Ozone Section

Ozone Output
4.0 grams/hr
Residual Ozone Dose at Nozzle
2.0 PPM (approx.)
Water Flow Rate
5.0 GPM
Nozzle Pressure
20 PSI
High Pressure Section
mPact-5SC
Water Flow Rate
2.0 GPM
Residual Ozone Dose at Nozzle
0.5 PPM (approx.)
Nozzle Pressure
900 PSI (max.)
General Machine

Power Requirements (systems available in configs. to right)
120V, 60Hz, 20A (x2)
240V, 60Hz, 15A
220V, 50Hz, 20A

Supply Water Temp.
40F - 80F
Supply Water Press.
30 PSI (min.)
Supply Water Flow
7.5 GPM (min.)
